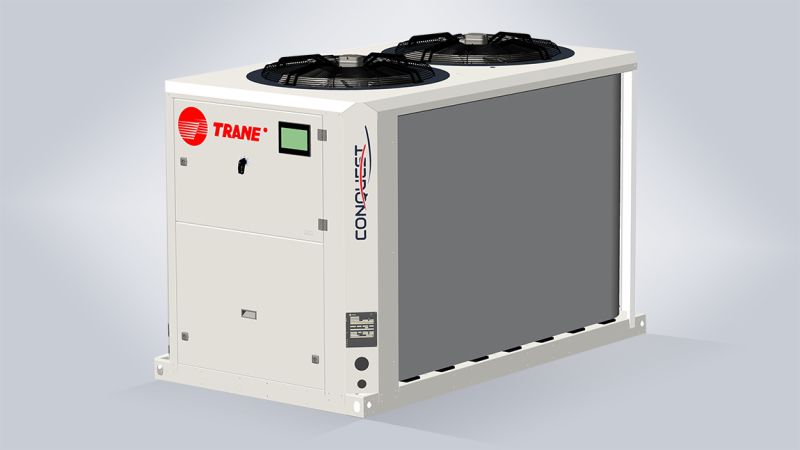

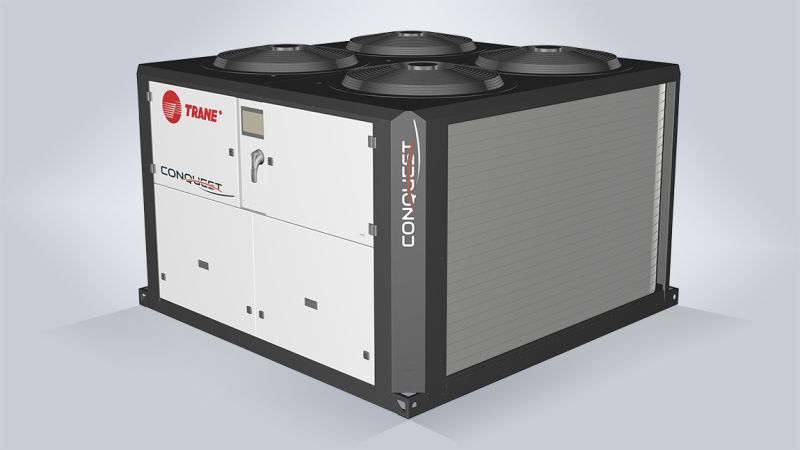

Conquest CXAX Air-to-Water Heat Pump
Cooling capacity: 40 - 155 kW
Heating capacity: 40 - 155 kW
- Compact design: reduced footprint and low-profile design
- Reversible operation: cooling or heating
- High full load and seasonal efficiency with standard EC fans. The CXAX HE heat pump is full optimized for low GWP R454B refrigerant
- Low sound levels with no compromise on efficiency
- Wide operating map: down to -15°C ambient air and up to +60°C leaving hot water temperature
- Single and/or dual circuit
The most sustainable and best value R454B heat pump
When choosing HVAC equipment for your building, comfort, sustainability, and economy are top priorities. Trane Conquest heat pumps offer high performance and proven reliability in a compact, affordable design, delivering maximum value.
The CXAX HE units can efficiently heat or cool your building year-round, even in extreme temperatures ranging from -15°C to +46°C. Plus, they can provide hot water temperatures up to 60°C.
Low noise – with no compromise on efficiency
Operating noise can be a significant disturbance in sensitive building environments. While most manufacturers oversize their units to reduce sound power levels, Trane’s Conquest HE range is designed to deliver lower noise without compromising efficiency or increasing the footprint. Our Low Noise (LN) models achieve an impressive 45 dB(A) sound pressure level at 10 meters in a free field.
Smart and simple
Operation is easy thanks to the integrated Trane Symbio™ 800 controller with optional LCD interface.
Communication interfaces are available to provide connectivity with Modbus, BACnet® and Trane BMS.
Trane Conquest heat pumps are available in 14 sizes. Units are available with single and/or dual circuit (on 90-155 kW range), as well two acoustic packages: Standard Noise, Low Noise (with no loss of efficiency).
Technical Specifications
| Product name | Cooling capacity | Heating capacity | Eurovent certification | ErP Certification |
|---|---|---|---|---|
| Conquest CXAX Air-to-Water Heat Pump | 40-155 kW | 40-155 kW |
| Compressor | Refrigerants | Energy saving | Operating mode | Data protocols | Unit type |
|---|---|---|---|---|---|
| Scroll | R454B | Heat recovery | Cooling only Heat pump | Lonmark Bacnet Modbus Air-to-water | |
Other Products You Might be Interested In
5 - 15 kW 6 - 18 kW
Picco Air-to-Water Heat Pump
- Inverter driven scroll compressor technology
- Very compact design
- Market-leading range of high performance air-to-water heat pumps
6 - 52 kW 8 - 63 kW

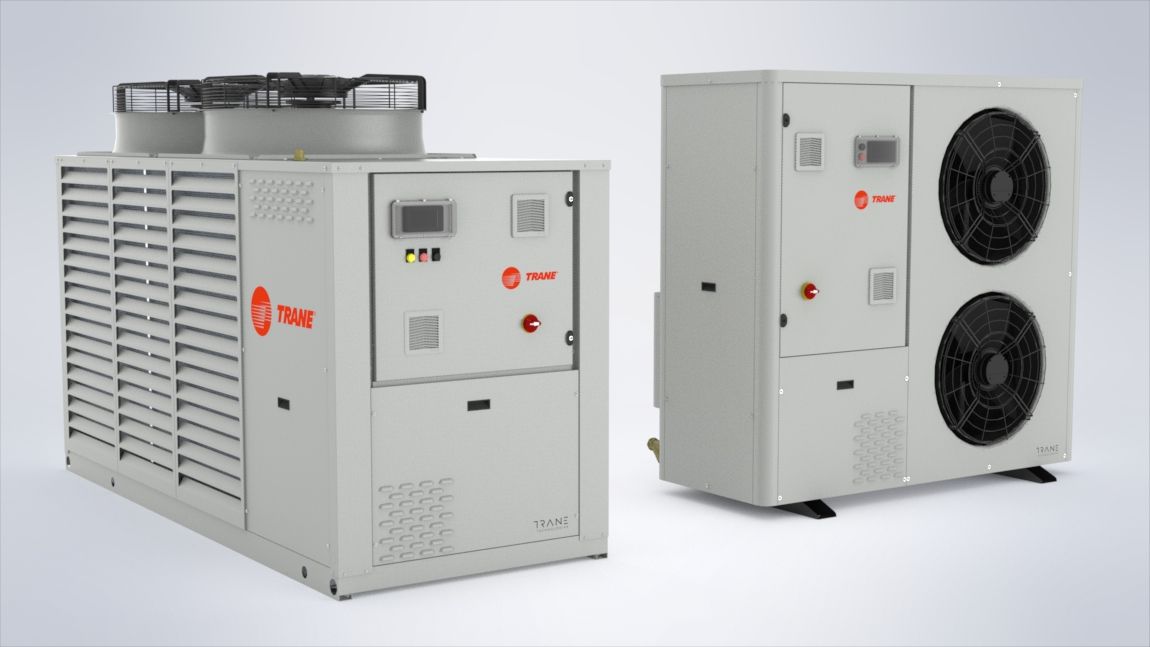

Trane Leaf Air-to-Water Heat Pump
- R290 pure, ultra-low GWP refrigerant: A sustainable long-term solution with negligible environmental impact
- Year-Round Hot Water Supply: Optimized to provide hot water for space heating and sanitary purposes. Also delivers chilled water for air-conditioning, operating at up to 46°C ambient air temperature
- Variable speed driven scroll compressor and EC fans for maximum efficiency and silent operation
18 - 49 kW 25 - 59 kW

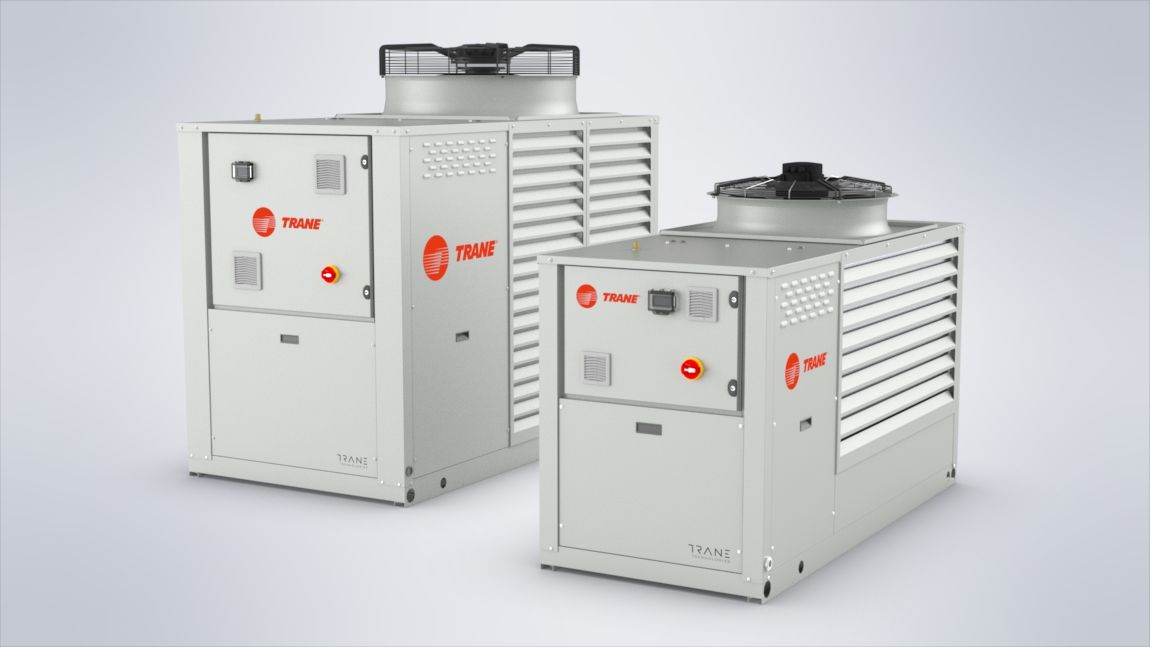

Trane Cube CXC Air-to-water Heat pump
- Compact design: Reduced footprint and height for minimal installation impact.
- Year-round hot water supply: Optimized to provide hot water for space heating and sanitary purposes, even in summer. Also delivers chilled water for air-conditioning, operating at up to 46°C ambient air temperature.
- Variable speed driven scroll compressor and EC fans: Ensures maximum efficiency and system flexibility.
50 - 144 kW 54 - 154 kW
Trane FLEX HP HT Air-to-Water Heat Pump
- Tandem scroll compressors
- Electronic expansion valve
- Leaving water temperature up to 65°C
55 - 130 kW 55 - 130 kW
Flex II Air-to-Water Heat Pump
- High part load efficiency
- Sustainable: very low refrigerant charge microchannel condenser coils
- High flexibility: ability to connect up to six Flex II units of equal or different capacities to one single FlexMaster controller
128 - 680 kW 127 - 700 kW
Sintesis Advantage CXAF Air-to-Water Heat Pump
- Sustainable and reliable cooling and heating, all year round
- Air-sourced renewable technology
- High efficiency at full load and part load with variable volume scroll compressor technology and variable speed fans
370 - 950 kW 380 - 1030 kW
RTXC Air-to-Water Heat Pump
- Efficient and sustainable heating and cooling for a wide variety of applications
- 3 operating modes to cover every season: cooling only, cooling while heating (via partial heat recovery) and heating only
- The best Eurovent certified cooling full load EER 3.6 and seasonal SEER 5.54 efficiencies of the industry in screw compressor reversible heat-pump category
