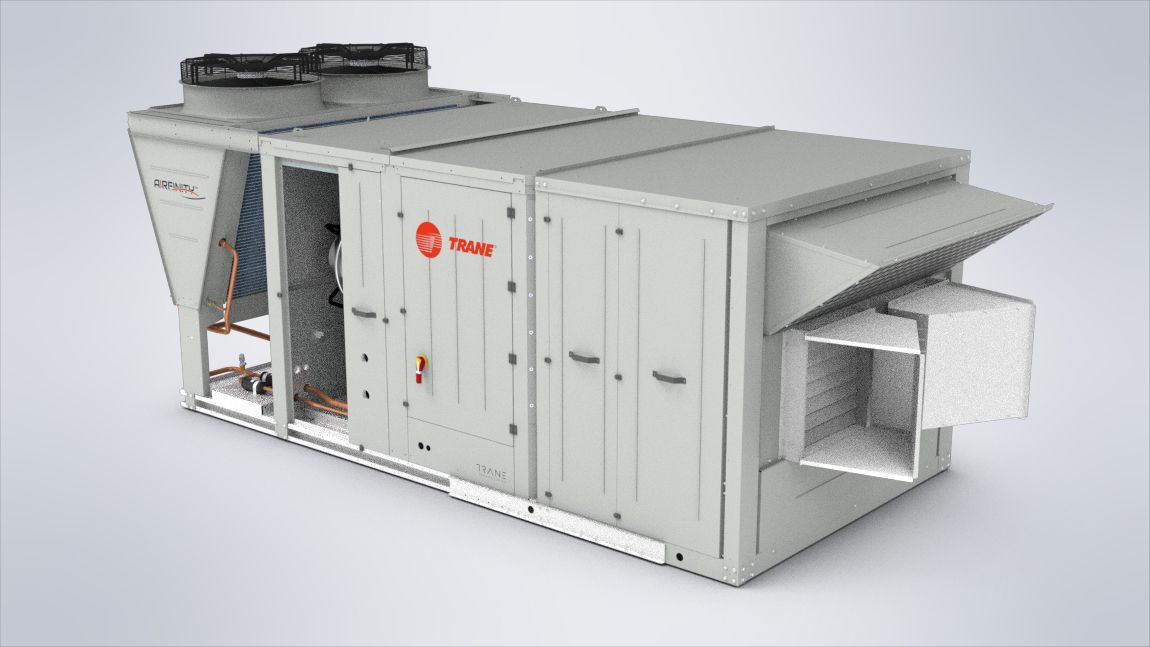

Airfinity Compact with AFD Rooftop
Cooling capacity: 16 - 87 kW
Heating capacity: 15 - 87 kW
- Adaptive Frequency Drive (AFD) compressor technology with low GWP R454B refrigerant.
- Integrated and pre-configured controls: Substantially reduce installation and commissioning time.
- Optimized heat exchanger improves efficiency in heating mode.
- Horizontal, upflow, or downflow air flow configurations.
- Ideal for retrofitting existing Voyager I and II rooftops.
All-in-one system with lowest operating costs
Airfinity™ rooftop air-to-air units combine heating, cooling, and ventilation into a single, efficient package, ensuring simplified installation and operation. Ideal for a wide range of applications, these units are perfect for environments where low initial cost and easy installation are crucial, such as supermarkets, shopping malls, cinemas, and restaurants.
With a strong legacy of proven reliability, Airfinity rooftops deliver high seasonal efficiency standards that meet even the most stringent European regulations. By significantly reducing energy and maintenance costs, these units help lower your total cost of ownership.
Integrated plug & play solution
Our packaged system features integrated controls designed to create the optimal comfort environment for your investment. Equipped with EC plug fans and high-efficiency AFD compressors, Airfinity units adapt fan rotation speed according to building load and ventilation requirements. This not only enhances occupant comfort by preventing cold drafts but also reduces energy consumption by up to 60% over the unit's lifetime.
The system facilitates easier on-site installation with versatile accessory combinations and heat recovery modules, supporting downflow, horizontal, and upflow connections.
Highly configurable and adaptable
Every Airfinity unit is fully customizable to meet the specific requirements of your building and application. Our extensive range of options and accessories includes energy-saving solutions and a variety of filtration options to enhance indoor air quality.
Designed for seamless integration, Airfinity Compact with AFD rooftop units connect directly to local ductwork, with or without a roof curb. These units are engineered to retrofit Voyager I & II units, fitting precisely into existing roof curbs.
For colder climates, we offer complementary heating sources such as electric heaters and hot water coils to ensure optimal comfort.
The Symbio™ 800 controller, factory-installed on all Trane packaged HVAC equipment, efficiently manages your Airfinity unit. This application-specific, programmable controller is exclusively designed and manufactured by Trane, leveraging our extensive expertise in manufacturing and installing rooftop units worldwide. Experience optimal operation and enhanced efficiency with Trane's cutting-edge technology.
We offer multiple heat recovery options to maximize energy efficiency, including:
• Thermodynamic systems
• Active systems with ERC refrigerant circuit
• Heat recovery wheel systems (ERM)
Simplified control solutions
Airfinity units come equipped with sensors that automatically regulate room temperature upon activation. For enhanced temperature and indoor air quality (IAQ) control, several advanced options are available.
With the unique Trane Tracer™ Concierge building management system, you can efficiently manage multiple rooftop units in a cost-effective and user-friendly manner.
Airfinity S is available in 8 different sizes with a wide section of options and accessories
IH: Reversible units
Technical Specifications
| Product name | Cooling capacity | Heating capacity | Eurovent certification | ErP Certification |
|---|---|---|---|---|
| Airfinity Compact with AFD Rooftop | 16-87 kW | 15-87 kW |
| Compressor | Refrigerants | Energy saving | Operating mode | Data protocols | Unit type |
|---|---|---|---|---|---|
| Scroll | R454B | Heat recovery Free cooling Adaptive Frequency™ Drive | Heat pump | Bacnet Modbus Air-to-air | |
